Products
Easy Maintenance Pot bearings
Outline
- Mixed application of stud bolts and anchor sockets reduces socket length.
- Minimize interference with structual reinforcing bar.
fixed end
One directional
Multi directional

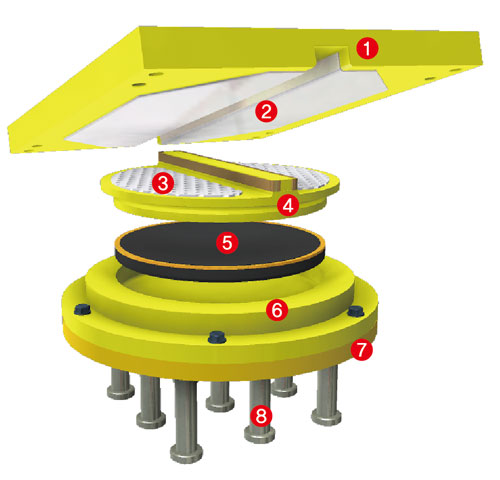

Composition
Top Plate(SM355 or SCMn2A)
Sliding Plate(STS316L)
Dimpled P.T.F.E
Center Plate(SM355)
Rubber Pad(NR or CR)
Bottom Plate(SM355 or SCMn2A)
Anchor Plate(SM355)
Stud Bolt(aluminium-killed steel)
Pot bearings for Negative reaction
Outline
- Negative reaction is generated due to the occurrence of an earthquake or the live load of a bridge.
- Prevents the upper structure from being lifted or separated by the negative reaction.
